Estrogenic Effect of Scoparia dulcis (Linn) Extract in Mice Uterus and In Silico Molecular Docking Studies of Certain Compounds with Human Estrogen Receptors

Authors
Khamhee Wangsa 1
Indira Sarma 1
Purbajyoti Saikia 1
Dhanabalan Ananthakrishnan 2
Hirendra Sarma 1
Devadasan Velmurugan 2
1 Department of Zoology, Rajiv Gandhi University, Rono Hills, Itanagar, Arunachal Pradesh, India
2 Centre of Advanced Study in Crystallography and Biophysics, University of Madras, Guindy Campus, Chennai, India
10.18502/jri.v21i4.4329
Abstract

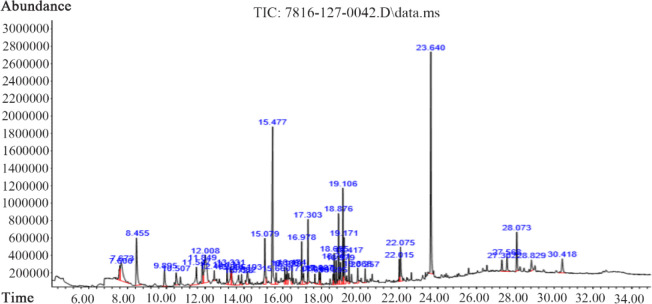

Background: Scoparia dulcis Linn. is reported to be used by women of Assam and Arunachal Pradesh in northeast India for treating menstrual disorders. Scoparia dulcis contains compounds that bind with estrogen receptors (ERα and ERβ) evidenced by increased PCNA in endometrial epithelium. Methods: Crude extract was orally administered at the dose of 500 mg/kg body weight/day to the female mice (60–70 days old) in five different groups. Each group containing six females included: (I) cyclic control, (II) cyclic extract treated, (III) Ovariectomized (OVX)-vehicle treated (Control), (IV) OVX-E2 treated (V) OVX- extract treated. Extract was administered for eight days to the cyclic groups and three days to the OVX groups. PCNA was detected immunohistochemically in uterine tiss ues and signals were analyzed by Image J software (NIH, USA). Compounds were separated by GC-MS and identified using NIST. In silico molecular docking studies was performed with human estrogen receptors (ERα and ERβ). Molecular dynamics (MD) simulations of the best interacting compound was done using gromacs. Results: The results showed cell proliferation in the uterine endometrium evidenced by PCNA. Two phytocompounds, Octadecanoic acid and methyl stearate showed binding affinity with ERα and ERβ. Conclusion: Scoparia dulcis contains compounds having binding affinity with ERα and ERβ. The present study is the first report on compounds from Scoparia dulcis showing binding affinity with human estrogen receptors which may have biological effect on female reproduction.
Keywords
Scoparia dulcis (Linn)
Endometrium
estrogen receptors
In Silico
Menstrual disorders
Molecular docking
Phytoestrogen
  1. Mishra MR, Mishra A, Pradhan DK, Behera RK, Jha S, Panda AK, et al. Microscopic characterization of Scoparia dulcis Linn. (Scrophulareaceae). Anc Sci Life. 2012;32(1):29-33.
  2. Moniruzzaman M, Rahman A, Ferdous A. Evaluation of sedative and hypnotic activity of ethanolic extract of Scoparia dulcis Linn. Evid Based Complement Alternat Med. 2015;2015:873954.
  3. Vasquez YM, DeMayo FJ. Role of nuclear receptors in blastocyst implantation. Semin Cell Dev Biol. 2013;24(10-12):724-35.
  4. Bondesson M, Hao R, Lin CY, Williams C, Gustafsson JÅ. Estrogen receptor signalling during vertebrate development. Biochim Biophys Acta. 2015;1849(2):142-51.
  5. Mikiewicz M, Otrocka-Domagała I, Paździor-Czapula K, Gesek M. Morphology and immunoreactivity of canine and feline extramedullary plasmacytomas. Pol J Vet Sci. 2016;19(2):345-52.
  6. Stoimenov I, Lagerqvist A. The PCNA pseudogenes in the human genome. BMC Res Notes. 2012;5:87.
  7. Kim SH, Park MJ. Effects of phytoestrogen on sexual development. Korean J Pediatr. 2012;55(8):265-71.
  8. Jungbauer A, Medjakovic S. Phytoestrogens and the metabolic syndrome. J Steroid Biochem Mol Biol. 2014;139:277-89.
  9. Lephart ED. Modulation of aromatase by phytoestrogens. Enzyme Res. 2015;2015:594656.
  10. Grande F, Rizzuti B, Occhiuzzi MA, Ioele G, Casacchia T, Gelmini F, et al. Identification by molecular docking of homoisoflavones from Leopoldia comosa as ligands of estrogen receptors. Molecules. 2018;23(4):894.
  11. Brahmachari G. Bioactive natural products: chemistry and biology. In: Mangalath DL, Sadasivan C, editors. Selective estrogen receptor modulators (SERMs) from plant. Germany: Wiley‐VCH Verlag GmbH & Co. KGaA; 2014. p. 375-85.
  12. Desai N, Mahto MK, Alekhya B, Naveen CR, Bhaskar M. Comparative docking studies of estrogen receptor inhibitors and their binding interaction analysis. Int J Pharm Sci Rev Res. 2012;16(1):91-5.
  13. Powers CN, Setzer WN. A molecular docking study of phytochemical estrogen mimics from dietary herbal supplements. In Silico Pharmacol. 2015;3:4.
  14. Thomas E, Aneesh TP, Thomas DG, Anandan R. GC-MS analysis of phytochemical compounds present in the rhizomes of Nervilia aragoana Gaud. Asian J Pharm Clin Res. 2013;6(3):68-74.
  15. Das M, Saikia PJ, Sarma HN. Crude bark extract of Dysozylum alliarium induces alterations in histological structures and VEGF-C expression in uterus during days 4–7 of gestation in albino rat. Reprod Med Biol. 2013;12(3):85-98.
  16. Hogan B, Beddington R, Constantini F, Lacy E. Manipulating the mouse embryo: a laboratory manual. 2nd ed. USA: Cold spring harbor laboratory; 1994. 114 p.
  17. Harlow E, Lane D. Using antibodies: a laboratory manual. USA: Cold spring harbor laboratory; 1999. 380 p.
  18. Schrodinger Suite 2014. Protein Preparation Wizard; Epik version 2.0, Schrodinger, LLC, New York, NY, 2014; Impact version 5.5, Schrodinger, LLC, New York, NY, 2014; Prime version 2.1, Schrodinger, LLC, New York, NY, 2014; Glide, version 5.5, Schrodinger, LLC, New York, NY, 2014.
  19. Abraham MJ, Murtola T, Schulz R, Páll S, Smith JC, Hess B, et al. GROMACS: High performance molecular simulations through multi-level parallelism from laptops to supercomputers. SoftwareX. 2015;1:19-25.
  20. Berendsen HJ, van der Spoel D, van Drunen R. GROMACS: a message-passing parallel molecular dynamics implementation. Comput Phys Commun. 1995;91(1-3):43-56.
  21. da Silva AWS, Vranken WF. ACPYPE -AnteChamber PYthon parser interfacE. BMC Res Notes. 2012;5:367.
  22. Hornak V, Abel R, Okur A, Strockbine B, Roitberg A, Simmerling C. Comparison of multiple Amber force fields and development of improved protein backbone parameters. Proteins. 2006;65(3):712-25.
  23. Wang J, Wolf RM, Caldwell JW, Kollman PA, Case DA. Development and testing of a general amber force field. J Comput Chem. 2004;25(9):1157-74.
  24. Schüttelkopf AW, Van Aalten DM. PRODRG: a tool for high-throughput crystallography of protein-ligand complexes. Acta Crystallogr D Biol Crystallogr. 2004;60(Pt 8):1355-63.
  25. Hess B. P-LINCS:  A parallel linear constraint solver for molecular simulation. J Chem Theory Comput. 2008;4(1):116-22.
  26. Swamy MK, Sinniah UR, Akhtar M. In vitro pharmacological activities and GC-MS analysis of different solvent extracts of Lantana camara leaves collected from tropical region of Malaysia. Evid Based Complement Alternat Med. 2015;2015:506413.
  27. Morimoto M, Fujii Y, Komai K. Antifeedants in Cyperaceae: coumaran and quinones from Cyperus spp. Phytochemistry. 1999;51(5):605-8.
  28. Wu S, Xu T, Huang D. Chemical compositions of the volatile extracts from seeds of Dendranthema nankingense and Borago officinalis. J Food Drug Anal. 2015;23(2):253-9.
  29. Del Olmo A, Calzada J, Nuñez M. Benzoic acid and its derivatives as naturally occurring compounds in foods and as additives: uses, exposure, and controversy. Crit Rev Food Sci Nutr. 2015;57(14):3084-103.
  30. Yun SS, Kim J, Lee SJ, So JS, Lee MY, Lee G, et al. Naturally occurring benzoic, sorbic, and propionic acid in vegetables. Food Addit Contam Part B Surveill. 2019;12(3):167‐74.
  31. Hayashi T, Gotoh K, Ohnishi K, Okamura K, Asamizu T. T.6-Methoxy-2-Benzoxazolinone in Scoparia dulcis and its production by cultured tissues. Phytochemistry. 1994;37(6):1611-4.
  32. Pamunuwa G, Karunaratne D, Waisundara VY. Antidiabetic properties, bioactive constituents, and other therapeutic effects of scoparia dulcis. Evid Based Complement Alternat Med. 2016;2016: 8243215.
  33. Saad AM, Ghareeb MA, Abdel-Aziz MS, Madkour HM, Khalaf OM, El-Ziaty AK, et al. Chemical constituents and biological activities of different solvent extracts of Prosopis farcta growing in Egypt. J Pharm Phytother. 2017;9(5):67-76.
  34. Saadatian M, Aghaei M, Farahpour M, Balouchi Z. Chemical composition of lavender (Lavandula officinallis L.) extraction extracted by two solvent concentrations. Global J Med Plant Res. 2013;1(2):214-7.
  35. Giang PM, Nga DT, Hai NX, Son PT. Further chemical constituents of Scoparia dulcis L. (scrophulariaceae) originating in Vietnam. J Chem. 2009;47(5):640-6.
  36. Muchalal M, Crouzet J. Volatile components of clove essential oil (Eugenia caryophyllus spreng): neutral fraction. Agric Biol Chem. 1985;49(6):1583-9.
  37. Abdel-Hady H, El-Wakil EA, Abdel-Gawad M. GC-MS analysis, antioxidant and cytotoxic activities of Mentha spicata. Eur J Med Plants. 2018;26(1):1-12.
  38. Aguilar NO, Schmeizer GH. Scoparia dulcis L. In: van Valkenburg JLCH, Bunyapraphatsara N, editors. Plant resources of south East Asia. Netherlands: Backhuys Publishers, Leiden; 2001. p. 493-6.
  39. Moussa TA, Almaghrabi OA. Fatty acid constituents of Peganum harmala plant using Gas Chromatography-Mass Spectroscopy. Saudi J Biol Sci. 2016;23(3):397‐403.
  40. Whitten PL, Naftolin F. Reproductive actions of phytoestrogens. Baillieres Clin Endocrinol Metab. 1998;12(4):667-90.
  41. Stark A, Madar Z. Phytoestrogens: a review of recent findings. J Pediatr. Endocrinol Metab. 2002;15(5):561-72.
  42. Bagchi D, Das DK, Tosaki A, Bagchi M, Kothari SC. Benefits of resveratrol in women's health. Drugs Exp Clin Res. 2001;27(5-6):233-48.
  43. Usui T. Pharmaceutical prospects of Phytoestrogens. Endocr J. 2006;53(1):7-20.
  44. Burton JL, Wells M. The effect of phytoestrogens on the female genital tract. J Clin Pathol. 2002;55(6):401-7.
  45. Chan WH. Impact of genistein on maturation of mouse oocytes, fertilization and fetal development. Reprod Toxicol. 2009;28(1):52-8.
  46. Keshri G, Oberoi RM, Lakshmi V, Pandey K, Singh MM. Contraceptive and hormonal properties of the stem bark of Dysoxylum binectariferum in rat and docking analysis of rohitukine, the alkaloid isolated from active chloroform soluble fraction. Contraception. 2007;76(5):400-7.
  47. Dey SK, Lim H, Das SK, Reese J, Paria BC, Daikoku T, et al. Molecular cues to implantation. Endocr Rev. 2004;25(3):341-73.
  48. Cozzini P, Dottorini T. Is it possible docking and scoring new ligands with few experimental data? Preliminary results on estrogen receptor as a case study? Eur J Med Chem. 2004;39(7):601-9.
  49. Kekenes-Huskey PM, Muegge I, von Rauch M, Gust R, Knapp EW. A molecular docking study of estrogenically active compounds with 1, 2-diarylethane and 1, 2-diarylethene pharmacophores. Bioorg Med Chem. 2004;12(24):6527-37.
  50. Simons R, Vincken JP, Mol LA, Bovee TF, Luijendijk TJ, Verbruggen MA, et al. Agonistic and antagonistic estrogens in licorice root(Glycyrrhiza glabra). Anal Bioanal Chem. 2011;401(1):305-13.
  51. Liu J, Burdette JE, Xu H, Gu C, Van Breemen RB, Bhat KP, et al. Evaluation of estrogenic activity of plant extracts for the potential treatment of menopausal symptoms. J Agric Food Chem. 2001;49(5):2472-9.
  52. Jarry H, Spengler B, Porzel A, Schmidt J, Wuttke W, Christoffel V. Evidence for estrogen receptor β-selective activity of Vitex agnus-castus and isolated flavones. Planta Med. 2003;69(10):945-7.
  53. Tamir S, Eizenberg M, Somjen D, Izrael S, Vaya J. Estrogen-like activity of glabrene and other constituents isolated from licorice root. J Steroid Biochem Mol Biol. 2001;78(3):291-8.
  54. Senadheera SP, Ekanayake S, Wanigatunge C. Anti-hyperglycaemic effects of herbal porridge made of Scoparia dulcis leaf extract in diabetics – a randomized crossover clinical trial. BMC Complement Altern Med. 2015;15:410.
Journal of Reproduction & Infertility
Volume 21, Issue 4
Autumn 2020
Pages 247-258
